# Vibration analysis

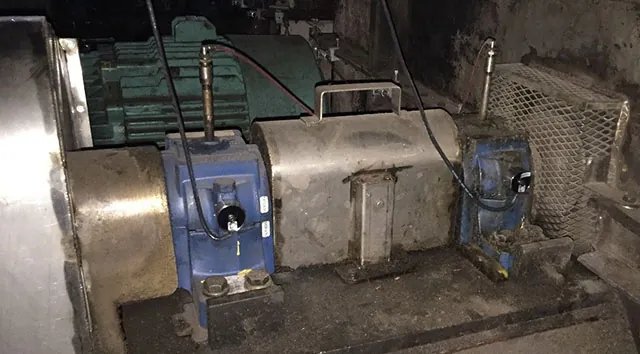

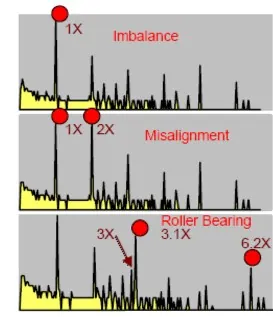

Vibration Analysis (VA), applied in an industrial or maintenance environment aims to reduce maintenance costs and equipment downtime by detecting equipment faults. VA is a key component of a Condition Monitoring (CM) program, and is often referred to as Predictive Maintenance (PdM). Most commonly VA is used to detect faults in rotating equipment (Fans, Motors, Pumps, and Gearboxes etc.) such as Unbalance, Misalignment, rolling element bearing faults and resonance conditions. VA can use the units of Displacement, Velocity and Acceleration displayed as a Time Waveform (TWF), but most commonly the spectrum is used, derived from a Fast Fourier Transform of the TWF. The vibration spectrum provides important frequency information that can pinpoint the faulty component. The fundamentals of vibration analysis can be understood by studying the simple mass–spring–damper model. Indeed, even a complex structure such as an automobile body can be modeled as a "summation" of simple mass–spring–damper models. The mass–spring–damper model is an example of a simple harmonic oscillator. The mathematics used to describe its behavior is identical to other simple harmonic oscillators such as the RLC circuit. Note: This article does not include the step-by-step mathematical derivations, but focuses on major vibration analysis equations and concepts. Please refer to the references at the end of the article for detailed derivations.

## Free vibration without damping

To start the investigation of the mass–spring–damper assume the damping is negligible and that there is no external force applied to the mass (i.e. free vibration). The force applied to the mass by the spring is proportional to the amount the spring is stretched "x" (assuming the spring is already compressed due to the weight of the mass). The proportionality constant, k, is the stiffness of the spring and has units of force/distance (e.g. lbf/in or N/m). The negative sign indicates that the force is always opposing the motion of the mass attached to it:

The force generated by the mass is proportional to the acceleration of the mass as given by Newton’s second law of motion:

The sum of the forces on the mass then generates this ordinary differential equation:

Assuming that the initiation of vibration begins by stretching the spring by the distance of A and releasing, the solution to the above equation that describes the motion of mass is:This solution says that it will oscillate with simple harmonic motion that has an amplitude of A and a frequency of fn. The number fn is called the undamped natural frequency. For the simple mass–spring system, fn is defined as:Note: angular frequency ω (ω=2 π f) with the units of radians per second is often used in equations because it simplifies the equations, but is normally converted to ordinary frequency (units of Hz or equivalently cycles per second) when stating the frequency of a system. If the mass and stiffness of the system is known, the formula above can determine the frequency at which the system vibrates once set in motion by an initial disturbance. Every vibrating system has one or more natural frequencies that it vibrates at once disturbed. This simple relation can be used to understand in general what happens to a more complex system once we add mass or stiffness. For example, the above formula explains why, when a car or truck is fully loaded, the suspension feels ″softer″ than unloaded—the mass has increased, reducing the natural frequency of the system.

## What causes the system to vibrate: from conservation of energy point of view

Vibrational motion could be understood in terms of conservation of energy. In the above example the spring has been extended by a value of x and therefore some potential energy (½kx²) is stored in the spring. Once released, the spring tends to return to its un-stretched state (which is the minimum potential energy state) and in the process accelerates the mass. At the point where the spring has reached its un-stretched state all the potential energy that we supplied by stretching it has been transformed into kinetic energy (½mv²). The mass then begins to decelerate because it is now compressing the spring and in the process transferring the kinetic energy back to its potential. Thus oscillation of the spring amounts to the transferring back and forth of the kinetic energy into potential energy. In this simple model the mass continues to oscillate forever at the same magnitude—but in a real system, damping always dissipates the energy, eventually bringing the spring to rest.

## Free vibration with damping

When a "viscous" damper is added to the model this outputs a force that is proportional to the velocity of the mass. The damping is called viscous because it models the effects of a fluid within an object. The proportionality constant c is called the damping coefficient and has units of Force over velocity (lbf s/ in or N s/m).

Summing the forces on the mass results in the following ordinary differential equation:

The solution to this equation depends on the amount of damping. If the damping is small enough, the system still vibrates—but eventually, over time, stops vibrating. This case is called underdamping, which is important in vibration analysis. If damping is increased just to the point where the system no longer oscillates, the system has reached the point of critical damping. If the damping is increased past critical damping, the system is overdamped. The value that the damping coefficient must reach for critical damping in the mass spring damper model is:

To characterize the amount of damping in a system a ratio called the damping ratio (also known as damping factor and % critical damping) is used. This damping ratio is just a ratio of the actual damping over the amount of damping required to reach critical damping. The formula for the damping ratio (ζ) of the mass spring damper model is:

For example, metal structures (e.g., airplane fuselages, engine crankshafts) have damping factors less than 0.05, while automotive suspensions are in the range of 0.2–0.3. The solution to the underdamped system for the mass spring damper model is the following:

The value of X, the initial magnitude, and Φ, the phase shift, are determined by the amount the spring is stretched. The formulas for these values can be found in the references.

## Damped and undamped natural frequencies

The major points to note from the solution are the exponential term and the cosine function. The exponential term defines how quickly the system “damps” down – the larger the damping ratio, the quicker it damps to zero. The cosine function is the oscillating portion of the solution, but the frequency of the oscillations is different from the undamped case.

The frequency in this case is called the "damped natural frequency", ƒd, and is related to the undamped natural frequency by the following formula:

The damped natural frequency is less than the undamped natural frequency, but for many practical cases the damping ratio is relatively small and hence the difference is negligible. Therefore, the damped and undamped description are often dropped when stating the natural frequency (e.g. with 0.1 damping ratio, the damped natural frequency is only 1% less than the undamped).

The plots to the side present how 0.1 and 0.3 damping ratios effect how the system “rings” down over time. What is often done in practice is to experimentally measure the free vibration after an impact (for example by a hammer) and then determine the natural frequency of the system by measuring the rate of oscillation, as well as the damping ratio by measuring the rate of decay. The natural frequency and damping ratio are not only important in free vibration, but also characterize how a system behaves under forced vibration.

## Forced vibration with damping

The behavior of the spring mass damper model varies with the addition of a harmonic force. A force of this type could, for example, be generated by a rotating imbalance.

Summing the forces on the mass results in the following ordinary differential equation:

The steady state solution of this problem can be written as:

The result states that the mass will oscillate at the same frequency, ƒ, of the applied force, but with a phase shift Φ.

The amplitude of the vibration “X” is defined by the following formula.

Where “r” is defined as the ratio of the harmonic force frequency over the undamped natural frequency of the mass–spring–damper model.

The phase shift, Φ, is defined by the following formula.

The plot of these functions, called "the frequency response of the system", presents one of the most important features in forced vibration. In a lightly damped system when the forcing frequency nears the natural frequency ({\displaystyle r\approx 1}) the amplitude of the vibration can get extremely high. This phenomenon is called resonance (subsequently the natural frequency of a system is often referred to as the resonant frequency). In rotor bearing systems any rotational speed that excites a resonant frequency is referred to as a critical speed.

If resonance occurs in a mechanical system it can be very harmful – leading to eventual failure of the system. Consequently, one of the major reasons for vibration analysis is to predict when this type of resonance may occur and then to determine what steps to take to prevent it from occurring. As the amplitude plot shows, adding damping can significantly reduce the magnitude of the vibration. Also, the magnitude can be reduced if the natural frequency can be shifted away from the forcing frequency by changing the stiffness or mass of the system. If the system cannot be changed, perhaps the forcing frequency can be shifted (for example, changing the speed of the machine generating the force).

The following are some other points in regards to the forced vibration shown in the frequency response plots.

• At a given frequency ratio, the amplitude of the vibration, X, is directly proportional to the amplitude of the force  (e.g. if you double the force, the vibration doubles)
• With little or no damping, the vibration is in phase with the forcing frequency when the frequency ratio r < 1 and 180 degrees out of phase when the frequency ratio r > 1
• When r ≪ 1 the amplitude is just the deflection of the spring under the static force  This deflection is called the static deflection  Hence, when r ≪ 1 the effects of the damper and the mass are minimal.
• When r ≫ 1 the amplitude of the vibration is actually less than the static deflection  In this region the force generated by the mass (F = ma) is dominating because the acceleration seen by the mass increases with the frequency. Since the deflection seen in the spring, X, is reduced in this region, the force transmitted by the spring (F = kx) to the base is reduced. Therefore, the mass–spring–damper system is isolating the harmonic force from the mounting base – referred to as vibration isolation. Interestingly, more damping actually reduces the effects of vibration isolation when r ≫ 1 because the damping force (F = cv) is also transmitted to the base.
• whatever the damping is, the vibration is 90 degrees out of phase with the forcing frequency when the frequency ratio r =1, which is very helpful when it comes to determining the natural frequency of the system.
• whatever the damping is, when r ≫1, the vibration is 180 degrees out of phase with the forcing frequency
• whatever the damping is, when r ≪ 1, the vibration is in phase with the forcing frequency

## What causes resonance?

Resonance is simple to understand if the spring and mass are viewed as energy storage elements – with the mass storing kinetic energy and the spring storing potential energy. As discussed earlier, when the mass and spring have no external force acting on them they transfer energy back and forth at a rate equal to the natural frequency. In other words, to efficiently pump energy into both mass and spring requires that the energy source feed the energy in at a rate equal to the natural frequency. Applying a force to the mass and spring is similar to pushing a child on swing, a push is needed at the correct moment to make the swing get higher and higher. As in the case of the swing, the force applied need not be high to get large motions, but must just add energy to the system.

The damper, instead of storing energy, dissipates energy. Since the damping force is proportional to the velocity, the more the motion, the more the damper dissipates the energy. Therefore, there is a point when the energy dissipated by the damper equals the energy added by the force. At this point, the system has reached its maximum amplitude and will continue to vibrate at this level as long as the force applied stays the same. If no damping exists, there is nothing to dissipate the energy and, theoretically, the motion will continue to grow into infinity.

## Applying "complex" forces to the mass–spring–damper model

In a previous section only a simple harmonic force was applied to the model, but this can be extended considerably using two powerful mathematical tools. The first is the Fourier transform that takes a signal as a function of time (time domain) and breaks it down into its harmonic components as a function of frequency (frequency domain). For example, by applying a force to the mass–spring–damper model that repeats the following cycle – a force equal to 1 newton for 0.5 second and then no force for 0.5 second. This type of force has the shape of a 1 Hz square wave.

How a 1 Hz square wave can be represented as a summation of sine waves(harmonics) and the corresponding frequency spectrum. Click and go to full resolution for an animation

The Fourier transform of the square wave generates a frequency spectrum that presents the magnitude of the harmonics that make up the square wave (the phase is also generated, but is typically of less concern and therefore is often not plotted). The Fourier transform can also be used to analyze non-periodic functions such as transients (e.g. impulses) and random functions. The Fourier transform is almost always computed using the Fast Fourier Transform (FFT) computer algorithm in combination with a window function.

In the case of our square wave force, the first component is actually a constant force of 0.5 newton and is represented by a value at "0" Hz in the frequency spectrum. The next component is a 1 Hz sine wave with an amplitude of 0.64. This is shown by the line at 1 Hz. The remaining components are at odd frequencies and it takes an infinite amount of sine waves to generate the perfect square wave. Hence, the Fourier transform allows you to interpret the force as a sum of sinusoidal forces being applied instead of a more "complex" force (e.g. a square wave).

In the previous section, the vibration solution was given for a single harmonic force, but the Fourier transform in general gives multiple harmonic forces. The second mathematical tool, "the principle of superposition", allows the summation of the solutions from multiple forces if the system is linear. In the case of the spring–mass–damper model, the system is linear if the spring force is proportional to the displacement and the damping is proportional to the velocity over the range of motion of interest. Hence, the solution to the problem with a square wave is summing the predicted vibration from each one of the harmonic forces found in the frequency spectrum of the square wave.

## Frequency response model

The solution of a vibration problem can be viewed as an input/output relation – where the force is the input and the output is the vibration. Representing the force and vibration in the frequency domain (magnitude and phase) allows the following relation:

{\displaystyle X(i\omega )=H(i\omega )\cdot F(i\omega )\ \ or\ \ H(i\omega )={X(i\omega ) \over F(i\omega )}.}

{\displaystyle H(i\omega )} is called the frequency response function (also referred to as the, but not technically as accurate) and has both a magnitude and phase component (if represented as a complex number, a real and imaginary component). The magnitude of the frequency response function (FRF) was presented earlier for the mass–spring–damper system.

{\displaystyle |H(i\omega )|=\left|{X(i\omega ) \over F(i\omega )}\right|={1 \over k}{1 \over {\sqrt {(1-r^{2})^{2}+(2\zeta r)^{2}}}},}   where   {\displaystyle r={\frac {f}{f_{n}}}={\frac {\omega }{\omega _{n}}}.}

The phase of the FRF was also presented earlier as:

{\displaystyle \angle H(i\omega )=-\arctan {\left({\frac {2\zeta r}{1-r^{2}}}\right)}.}

For example, calculating the FRF for a mass–spring–damper system with a mass of 1 kg, spring stiffness of 1.93 N/mm and a damping ratio of 0.1. The values of the spring and mass give a natural frequency of 7 Hz for this specific system. Applying the 1 Hz square wave from earlier allows the calculation of the predicted vibration of the mass. The figure illustrates the resulting vibration. It happens in this example that the fourth harmonic of the square wave falls at 7 Hz. The frequency response of the mass–spring–damper therefore outputs a high 7 Hz vibration even though the input force had a relatively low 7 Hz harmonic. This example highlights that the resulting vibration is dependent on both the forcing function and the system that the force is applied to.

Frequency response model

The figure also shows the time domain representation of the resulting vibration. This is done by performing an inverse Fourier Transform that converts frequency domain data to time domain. In practice, this is rarely done because the frequency spectrum provides all the necessary information.

The frequency response function (FRF) does not necessarily have to be calculated from the knowledge of the mass, damping, and stiffness of the system—but can be measured experimentally. For example, if a known force over a range of frequencies is applied, and if the associated vibrations are measured, the frequency response function can be calculated, thereby characterizing the system. This technique is used in the field of experimental modal analysis to determine the vibration characteristics of a structure.

## Multiple degrees of freedom systems and mode shapes

The simple mass–spring damper model is the foundation of vibration analysis, but what about more complex systems? The mass–spring–damper model described above is called a single degree of freedom (SDOF) model since the mass is assumed to only move up and down. In more complex systems, the system must be discretized into more masses that move in more than one direction, adding degrees of freedom. The major concepts of multiple degrees of freedom (MDOF) can be understood by looking at just a 2 degree of freedom model as shown in the figure.

2 degree of freedom model

The equations of motion of the 2DOF system are found to be:

{\displaystyle m_{1}{\ddot {x_{1}}}+{(c_{1}+c_{2})}{\dot {x_{1}}}-{c_{2}}{\dot {x_{2}}}+{(k_{1}+k_{2})}x_{1}-{k_{2}}x_{2}=f_{1},}
{\displaystyle m_{2}{\ddot {x_{2}}}-{c_{2}}{\dot {x_{1}}}+{(c_{2}+c_{3})}{\dot {x_{2}}}-{k_{2}}x_{1}+{(k_{2}+k_{3})}x_{2}=f_{2}.\!}

This can be rewritten in matrix format:

{\displaystyle {\begin{bmatrix}m_{1}&0\\0&m_{2}\end{bmatrix}}{\begin{Bmatrix}{\ddot {x_{1}}}\\{\ddot {x_{2}}}\end{Bmatrix}}+{\begin{bmatrix}c_{1}+c_{2}&-c_{2}\\-c_{2}&c_{2}+c_{3}\end{bmatrix}}{\begin{Bmatrix}{\dot {x_{1}}}\\{\dot {x_{2}}}\end{Bmatrix}}+{\begin{bmatrix}k_{1}+k_{2}&-k_{2}\\-k_{2}&k_{2}+k_{3}\end{bmatrix}}{\begin{Bmatrix}x_{1}\\x_{2}\end{Bmatrix}}={\begin{Bmatrix}f_{1}\\f_{2}\end{Bmatrix}}.}

A more compact form of this matrix equation can be written as:

{\displaystyle {\begin{bmatrix}M\end{bmatrix}}{\begin{Bmatrix}{\ddot {x}}\end{Bmatrix}}+{\begin{bmatrix}C\end{bmatrix}}{\begin{Bmatrix}{\dot {x}}\end{Bmatrix}}+{\begin{bmatrix}K\end{bmatrix}}{\begin{Bmatrix}x\end{Bmatrix}}={\begin{Bmatrix}f\end{Bmatrix}}}

where {\displaystyle {\begin{bmatrix}M\end{bmatrix}},} {\displaystyle {\begin{bmatrix}C\end{bmatrix}},} and {\displaystyle {\begin{bmatrix}K\end{bmatrix}}} are symmetric matrices referred respectively as the mass, damping, and stiffness matrices. The matrices are NxN square matrices where N is the number of degrees of freedom of the system.

In the following analysis involves the case where there is no damping and no applied forces (i.e. free vibration). The solution of a viscously damped system is somewhat more complicated.

{\displaystyle {\begin{bmatrix}M\end{bmatrix}}{\begin{Bmatrix}{\ddot {x}}\end{Bmatrix}}+{\begin{bmatrix}K\end{bmatrix}}{\begin{Bmatrix}x\end{Bmatrix}}=0.}

This differential equation can be solved by assuming the following type of solution:

{\displaystyle {\begin{Bmatrix}x\end{Bmatrix}}={\begin{Bmatrix}X\end{Bmatrix}}e^{i\omega t}.}

Note: Using the exponential solution of {\displaystyle {\begin{Bmatrix}X\end{Bmatrix}}e^{i\omega t}} is a mathematical trick used to solve linear differential equations. Using Euler's formula and taking only the real part of the solution it is the same cosine solution for the 1 DOF system. The exponential solution is only used because it is easier to manipulate mathematically.

The equation then becomes:

{\displaystyle {\begin{bmatrix}-\omega ^{2}{\begin{bmatrix}M\end{bmatrix}}+{\begin{bmatrix}K\end{bmatrix}}\end{bmatrix}}{\begin{Bmatrix}X\end{Bmatrix}}e^{i\omega t}=0.}

Since {\displaystyle e^{i\omega t}} cannot equal zero the equation reduces to the following.

{\displaystyle {\begin{bmatrix}{\begin{bmatrix}K\end{bmatrix}}-\omega ^{2}{\begin{bmatrix}M\end{bmatrix}}\end{bmatrix}}{\begin{Bmatrix}X\end{Bmatrix}}=0.}

### Eigenvalue problem

This is referred to an eigenvalue problem in mathematics and can be put in the standard format by pre-multiplying the equation by {\displaystyle {\begin{bmatrix}M\end{bmatrix}}^{-1}}

{\displaystyle {\begin{bmatrix}{\begin{bmatrix}M\end{bmatrix}}^{-1}{\begin{bmatrix}K\end{bmatrix}}-\omega ^{2}{\begin{bmatrix}M\end{bmatrix}}^{-1}{\begin{bmatrix}M\end{bmatrix}}\end{bmatrix}}{\begin{Bmatrix}X\end{Bmatrix}}=0}

and if: {\displaystyle {\begin{bmatrix}M\end{bmatrix}}^{-1}{\begin{bmatrix}K\end{bmatrix}}={\begin{bmatrix}A\end{bmatrix}}} and {\displaystyle \lambda =\omega ^{2}\,}

{\displaystyle {\begin{bmatrix}{\begin{bmatrix}A\end{bmatrix}}-\lambda {\begin{bmatrix}I\end{bmatrix}}\end{bmatrix}}{\begin{Bmatrix}X\end{Bmatrix}}=0.}

The solution to the problem results in N eigenvalues (i.e. {\displaystyle \omega _{1}^{2},\omega _{2}^{2},\cdots \omega _{N}^{2}}), where N corresponds to the number of degrees of freedom. The eigenvalues provide the natural frequencies of the system. When these eigenvalues are substituted back into the original set of equations, the values of {\displaystyle {\begin{Bmatrix}X\end{Bmatrix}}} that correspond to each eigenvalue are called theeigenvectors. These eigenvectors represent the mode shapes of the system. The solution of an eigenvalue problem can be quite cumbersome (especially for problems with many degrees of freedom), but fortunately most math analysis programs have eigenvalue routines.

The eigenvalues and eigenvectors are often written in the following matrix format and describe the modal model of the system:

{\displaystyle {\begin{bmatrix}^{\diagdown }\omega _{r\diagdown }^{2}\end{bmatrix}}={\begin{bmatrix}\omega _{1}^{2}&\cdots &0\\\vdots &\ddots &\vdots \\0&\cdots &\omega _{N}^{2}\end{bmatrix}}} and {\displaystyle {\begin{bmatrix}\Psi \end{bmatrix}}={\begin{bmatrix}{\begin{Bmatrix}\psi _{1}\end{Bmatrix}}{\begin{Bmatrix}\psi _{2}\end{Bmatrix}}\cdots {\begin{Bmatrix}\psi _{N}\end{Bmatrix}}\end{bmatrix}}.}

A simple example using the 2 DOF model can help illustrate the concepts. Let both masses have a mass of 1 kg and the stiffness of all three springs equal 1000 N/m. The mass and stiffness matrix for this problem are then:

{\displaystyle {\begin{bmatrix}M\end{bmatrix}}={\begin{bmatrix}1&0\\0&1\end{bmatrix}}} and {\displaystyle {\begin{bmatrix}K\end{bmatrix}}={\begin{bmatrix}2000&-1000\\-1000&2000\end{bmatrix}}.}

Then {\displaystyle {\begin{bmatrix}A\end{bmatrix}}={\begin{bmatrix}2000&-1000\\-1000&2000\end{bmatrix}}.}

The eigenvalues for this problem given by an eigenvalue routine is:

{\displaystyle {\begin{bmatrix}^{\diagdown }\omega _{r\diagdown }^{2}\end{bmatrix}}={\begin{bmatrix}1000&0\\0&3000\end{bmatrix}}.}

The natural frequencies in the units of hertz are then (remembering {\displaystyle \scriptstyle \omega =2\pi f}) {\displaystyle \scriptstyle f_{1}=5.033\mathrm {\ Hz} } and {\displaystyle \scriptstyle f_{2}=8.717\mathrm {\ Hz} }.

The two mode shapes for the respective natural frequencies are given as:

{\displaystyle {\begin{bmatrix}\Psi \end{bmatrix}}={\begin{bmatrix}{\begin{Bmatrix}\psi _{1}\end{Bmatrix}}{\begin{Bmatrix}\psi _{2}\end{Bmatrix}}\end{bmatrix}}={\begin{bmatrix}{\begin{Bmatrix}-0.707\\-0.707\end{Bmatrix}}_{1}{\begin{Bmatrix}0.707\\-0.707\end{Bmatrix}}_{2}\end{bmatrix}}.}

Since the system is a 2 DOF system, there are two modes with their respective natural frequencies and shapes. The mode shape vectors are not the absolute motion, but just describe relative motion of the degrees of freedom. In our case the first mode shape vector is saying that the masses are moving together in phase since they have the same value and sign. In the case of the second mode shape vector, each mass is moving in opposite direction at the same rate.

## Illustration of a multiple DOF problem

When there are many degrees of freedom, one method of visualizing the mode shapes is by animating them. An example of animated mode shapes is shown in the figure below for a cantilevered I-beam. In this case, the finite element method was used to generate an approximation to the mass and stiffness matrices and solve a discrete eigenvalue problem. Note that, in this case, the finite element method provides an approximation of the 3D electrodynamics model (for which there exists an infinite number of vibration modes and frequencies). Therefore, this relatively simple model that has over 100 degrees of freedom and hence as many natural frequencies and mode shapes, provides a good approximation for the first natural frequencies and modes†. Generally, only the first few modes are important for practical applications.

^ Note that when performing a numerical approximation of any mathematical model, convergence of the parameters of interest must be ascertained.

## Multiple DOF problem converted to a single DOF problem

The eigenvectors have very important properties called orthogonality properties. These properties can be used to greatly simplify the solution of multi-degree of freedom models. It can be shown that the eigenvectors have the following properties:

{\displaystyle {\begin{bmatrix}\Psi \end{bmatrix}}^{T}{\begin{bmatrix}M\end{bmatrix}}{\begin{bmatrix}\Psi \end{bmatrix}}={\begin{bmatrix}^{\diagdown }m_{r\diagdown }\end{bmatrix}},}
{\displaystyle {\begin{bmatrix}\Psi \end{bmatrix}}^{T}{\begin{bmatrix}K\end{bmatrix}}{\begin{bmatrix}\Psi \end{bmatrix}}={\begin{bmatrix}^{\diagdown }k_{r\diagdown }\end{bmatrix}}.}

{\displaystyle {\begin{bmatrix}^{\diagdown }m_{r\diagdown }\end{bmatrix}}} and {\displaystyle {\begin{bmatrix}^{\diagdown }k_{r\diagdown }\end{bmatrix}}} are diagonal matrices that contain the modal mass and stiffness values for each one of the modes. (Note: Since the eigenvectors (mode shapes) can be arbitrarily scaled, the orthogonality properties are often used to scale the eigenvectors so the modal mass value for each mode is equal to 1. The modal mass matrix is therefore an identity matrix)

These properties can be used to greatly simplify the solution of multi-degree of freedom models by making the following coordinate transformation.

{\displaystyle {\begin{Bmatrix}x\end{Bmatrix}}={\begin{bmatrix}\Psi \end{bmatrix}}{\begin{Bmatrix}q\end{Bmatrix}}.}

Using this coordinate transformation in the original free vibration differential equation results in the following equation.

{\displaystyle {\begin{bmatrix}M\end{bmatrix}}{\begin{bmatrix}\Psi \end{bmatrix}}{\begin{Bmatrix}{\ddot {q}}\end{Bmatrix}}+{\begin{bmatrix}K\end{bmatrix}}{\begin{bmatrix}\Psi \end{bmatrix}}{\begin{Bmatrix}q\end{Bmatrix}}=0.}

Taking advantage of the orthogonality properties by premultiplying this equation by {\displaystyle {\begin{bmatrix}\Psi \end{bmatrix}}^{T}}

{\displaystyle {\begin{bmatrix}\Psi \end{bmatrix}}^{T}{\begin{bmatrix}M\end{bmatrix}}{\begin{bmatrix}\Psi \end{bmatrix}}{\begin{Bmatrix}{\ddot {q}}\end{Bmatrix}}+{\begin{bmatrix}\Psi \end{bmatrix}}^{T}{\begin{bmatrix}K\end{bmatrix}}{\begin{bmatrix}\Psi \end{bmatrix}}{\begin{Bmatrix}q\end{Bmatrix}}=0.}

The orthogonality properties then simplify this equation to:

{\displaystyle {\begin{bmatrix}^{\diagdown }m_{r\diagdown }\end{bmatrix}}{\begin{Bmatrix}{\ddot {q}}\end{Bmatrix}}+{\begin{bmatrix}^{\diagdown }k_{r\diagdown }\end{bmatrix}}{\begin{Bmatrix}q\end{Bmatrix}}=0.}

This equation is the foundation of vibration analysis for multiple degree of freedom systems. A similar type of result can be derived for damped systems. The key is that the modal mass and stiffness matrices are diagonal matrices and therefore the equations have been "decoupled". In other words, the problem has been transformed from a large unwieldy multiple degree of freedom problem into many single degree of freedom problems that can be solved using the same methods outlined above.

Solving for x is replaced by solving for q, referred to as the modal coordinates or modal participation factors.

It may be clearer to understand if {\displaystyle {\begin{Bmatrix}x\end{Bmatrix}}={\begin{bmatrix}\Psi \end{bmatrix}}{\begin{Bmatrix}q\end{Bmatrix}}} is written as:

{\displaystyle {\begin{Bmatrix}x_{n}\end{Bmatrix}}=q_{1}{\begin{Bmatrix}\psi \end{Bmatrix}}_{1}+q_{2}{\begin{Bmatrix}\psi \end{Bmatrix}}_{2}+q_{3}{\begin{Bmatrix}\psi \end{Bmatrix}}_{3}+\cdots +q_{N}{\begin{Bmatrix}\psi \end{Bmatrix}}_{N}.}

Written in this form it can be seen that the vibration at each of the degrees of freedom is just a linear sum of the mode shapes. Furthermore, how much each mode "participates" in the final vibration is defined by q, its modal participation factor.
